EL type automatic lubricator

Product Details
The EL Type Automatic Lubricator is fully digital and automatic type. It features fully electric driving,single-point or muti-point lubrication.It is normally used for circumstances which need more precise and sequential control such as group control via wireless communications which makes it able to control up to 8 outlets with mobile APP or PC end software.

Features
Fully-digital automatic timing-quantitative lubrication

Working pressure
15-30bar

Operating temperature
–40 °C to +60°C

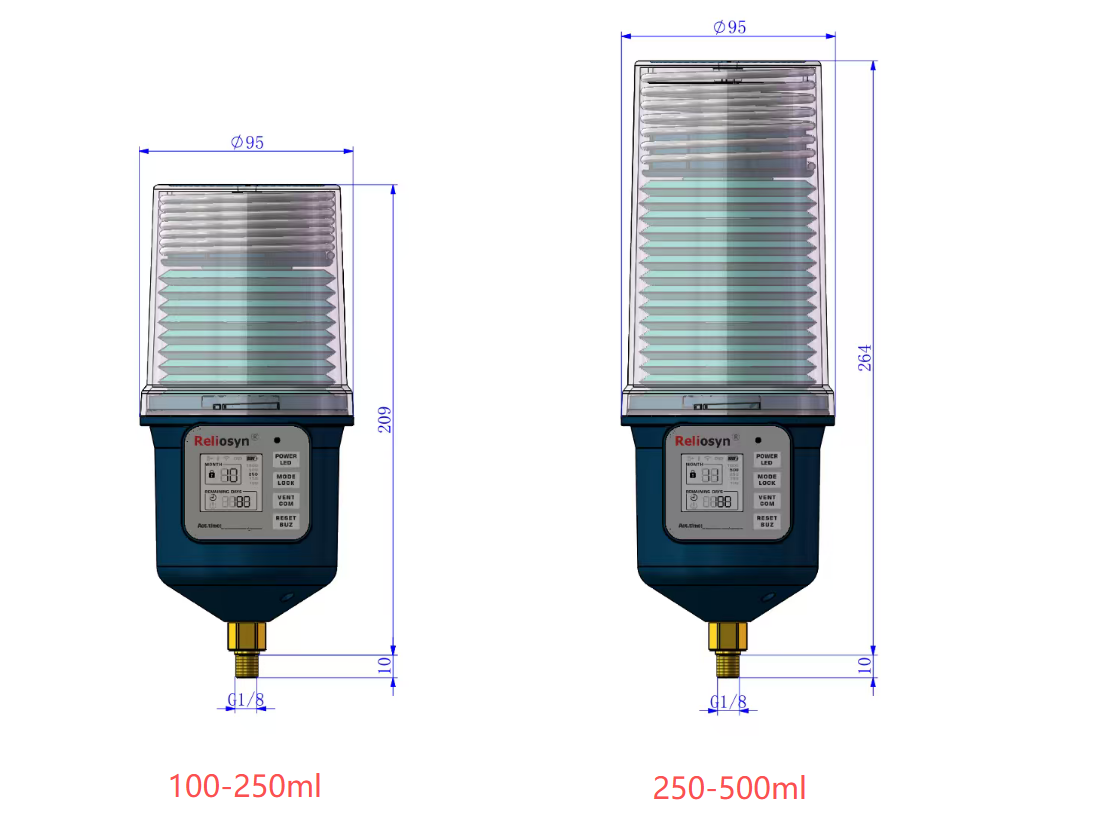

Sizes
100ml 150ml 250ml 500ml

Adjustment
The working period can be set from 1 to 12 months.Parameters can be adjusted anytime,and stop-or-restart function is available

Installation
Omni-directional installation .It can be mounted in mobile,inverted,horizontal and high-altitude positions without adjusting the oil pipeline

Reliable Performance
Water-proof,shock-proof and explosion-proof

Eco‑Friendly Feature
This automatic lubricator is long‑term service‑oriented and generally replacement‑free

Optional Function
Communication modules including Bluetooth, WiFi, 485 and 4G are optional. It supports mobile‑APP and PC control. 1‑outlet to 8‑outlet options for grease ports
